QwwNavigationBar Class Reference
[wwWidgets module]

The QwwNavigationBar class provides a widget similar to MS Outlook navigation bar. More...

 #include <QwwNavigationBar>

This class is not part of the Qt GUI Framework Edition.

Inherits QWidget.


Properties


Public Functions

QwwNavigationBar ( QWidget * parent = 0 )
void addWidget ( QWidget * child, const QIcon & icon, const QString & label = QString::null )
void addWidget ( QWidget * child, const QString & label = QString::null )
const QPushButton * button ( int index ) const
int currentIndex () const
int indexOf ( QWidget * widget ) const
void insertWidget ( int index, QWidget * child, const QIcon & icon, const QString & label = QString::null )
void insertWidget ( int index, QWidget * child, const QString & label = QString::null )
void removeWidget ( int index )
void setCurrentWidget ( QWidget * widget )
void setWidgetIcon ( int index, const QIcon & icon )
void setWidgetLabel ( int index, const QString & label )
bool topWidgetIsVisible () const
QWidget * widget ( int index ) const
int widgetCount () const
QIcon widgetIcon ( int index ) const
QString widgetLabel ( int index ) const

Public Slots

void setCurrentIndex ( int index )
void setTopWidgetVisible ( bool v )

Signals

void currentIndexChanged ( int index )
void topWidgetVisibleChanged ( bool vis )
void widgetIconChanged ( const QIcon & icon )
void widgetIconChanged ( int index, const QIcon & )
void widgetLabelChanged ( const QString & label )
void widgetLabelChanged ( int index, const QString & )

Reimplemented Protected Functions

virtual bool eventFilter ( QObject *, QEvent * )

Additional Inherited Members


Detailed Description

The QwwNavigationBar class provides a widget similar to MS Outlook navigation bar.

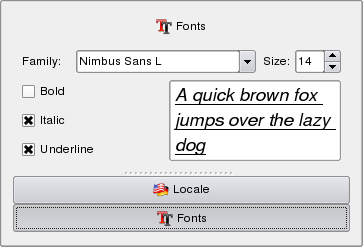

Navigation bar

Action management

Actions can be added to a navigation bar which causes buttons representing them to appear in the bottom of the widget.


Property Documentation

currentIndex : int

This property holds this property holds the index position of the current bar.

Access functions:

int currentIndex () const
void setCurrentIndex ( int index )

topWidgetVisible : bool

This property holds this property holds whether the top widget is visible.

If this property is true then a widget containing the current group is shown at the top of the widget. This property is true by default.

Access functions:

bool topWidgetIsVisible () const
void setTopWidgetVisible ( bool v )

Member Function Documentation

QwwNavigationBar::QwwNavigationBar ( QWidget * parent = 0 )

Constructs a navigation bar widget with a given parent

void QwwNavigationBar::addWidget ( QWidget * child, const QIcon & icon, const QString & label = QString::null )

Adds child with icon and label to the navigation bar at the last position.

void QwwNavigationBar::addWidget ( QWidget * child, const QString & label = QString::null )

This is an overloaded function.

const QPushButton * QwwNavigationBar::button ( int index ) const

Returns pointer to a button associated with a child under index

void QwwNavigationBar::currentIndexChanged ( int index )   [signal]

This signal is emitted whenever the current index of the widget changes to index

bool QwwNavigationBar::eventFilter ( QObject *, QEvent * )   [virtual protected]

int QwwNavigationBar::indexOf ( QWidget * widget ) const

Returns an index of widget in the navigation bar

void QwwNavigationBar::insertWidget ( int index, QWidget * child, const QIcon & icon, const QString & label = QString::null )

Inserts widget specified by child with icon and label to the navigation bar under position index

void QwwNavigationBar::insertWidget ( int index, QWidget * child, const QString & label = QString::null )

This is an overloaded function.

void QwwNavigationBar::removeWidget ( int index )

Removes widget specified by index from the navigation bar

void QwwNavigationBar::setCurrentWidget ( QWidget * widget )

Sets widget as the currently visible widget.

void QwwNavigationBar::setWidgetIcon ( int index, const QIcon & icon )

Associates icon with a widget under index

See also widgetIcon().

void QwwNavigationBar::setWidgetLabel ( int index, const QString & label )

Sets label as the title for the widget under index

See also widgetLabel().

void QwwNavigationBar::topWidgetVisibleChanged ( bool vis )   [signal]

This signal is emitted whenever visibility of the top widget changes to vis

QWidget * QwwNavigationBar::widget ( int index ) const

Returns a pointer to the widget at position index

int QwwNavigationBar::widgetCount () const

Returns the number of widgets in the navigation bar.

QIcon QwwNavigationBar::widgetIcon ( int index ) const

Returns icon of the widget under index

See also setWidgetIcon().

void QwwNavigationBar::widgetIconChanged ( const QIcon & icon )   [signal]

This signal is emitted when the icon of the current widget changes to icon.

void QwwNavigationBar::widgetIconChanged ( int index, const QIcon & )   [signal]

QString QwwNavigationBar::widgetLabel ( int index ) const

Returns label of the widget under index

See also setWidgetLabel().

void QwwNavigationBar::widgetLabelChanged ( const QString & label )   [signal]

This signal is emitted when the label of the current widget changes to label.

void QwwNavigationBar::widgetLabelChanged ( int index, const QString & )   [signal]
